The side wall of bed is constructed of double-rib plates and internal rib plate employs combined structure of box-type and bevel ribs, Rigidity of machines increases a factor of by 1/3 times compared with that of n-type ribs of single wall.
Operations are concentrated. On the apron, there is a device which can move rapidly and is operated by a single handle.
Braking and rotating direction change of spindle isvisualizedly controlled by hydraulic system.

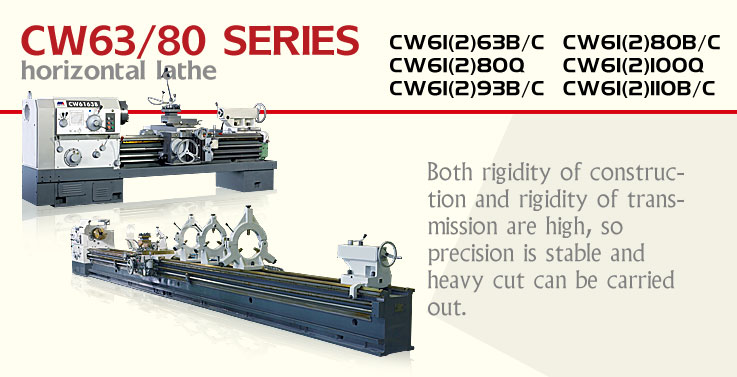

Both rigidity of construction and rigidity of transmission are high, so precision is stable and heavy cut can be carried out. Owing to the saddle guideway which is inlaid with “TSF” wear-resisting material plate, the carriage moves lightly and nimbly. The service life of the guideway is extended.
Lubricating system circulates from the external independent storage tank, thus cutting precision is increased. The spindle bore is 104mm. the tailstock is equipped with a graduated disc and graduated line.
The machine is characterized with elegant appearance and easy to be cleaned and maintained.
